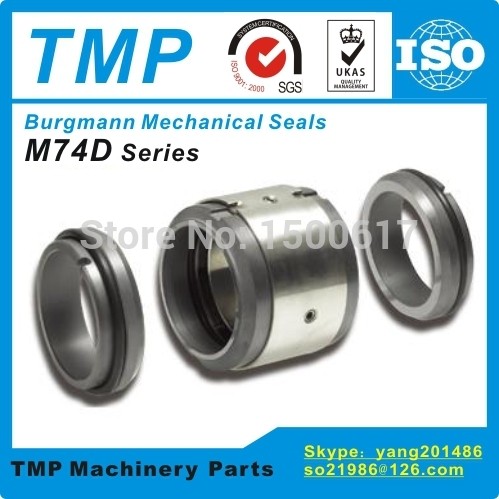

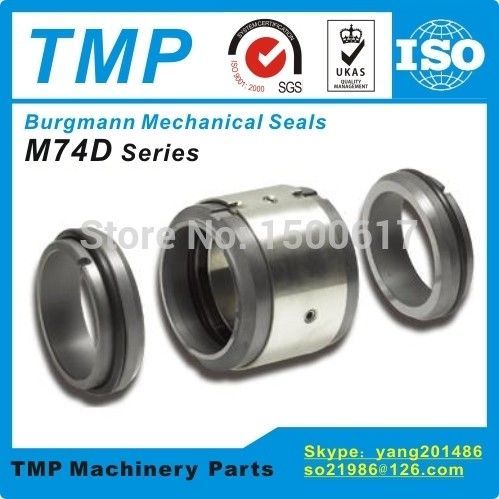

M74D-70 Burgmann Mechanical Seals (70x91x92mm) |M74-D Multiple springs Unbalanced Seals
Подробная информация о продукте:
Место происхождения: |
Китай |
Фирменное наименование: |
TLANMP |
Сертификация: |
ISO 9001:2005 |
Model Number: |
M74D-70 |
Оплата и доставка Условия:
Minimum Order Quantity: |
1 |
Цена: |
$1~$500 |
Упаковывая детали: |
Промышленная упаковка нейтрали (бумажная коробка) |
Время доставки: |
1-3 через день после компенсации |
Условия оплаты: |
Т/Т, ВУ, ПайПал, Алипай етк |
Поставка способности: |
1~1000 частей в месяц |
Контакт
Подробное описание продукта
Standard or Nonstandard: |
Standard |
Style: |
Mechanical Seal |
Material: |
Silicone |
M74D-70 Burgmann Mechanical Seals (70x91x92mm) |M74-D Multiple springs Unbalanced Seals for Shaft Size 70mm Pumps |
Series |
Burgmann Mechanical Seals M74-D |
Model Number |
M74D-70 |
Shaft Size |
70 mm |
Introduction |
Double seal;
Unbalanced;
Independent direction of rotation;
Multiple springs;
Double seals in the M74D series have the same design-features as the “M7“ family of single seals (easy-to-replace seal faces, etc.). Apart from the installation length of the drive collar, all fittingdimensions (d1 <100 mm) conform with EN 12756.
|
Application
Date |
Operation limits:
shaft size: 18-200mm
Temperature: -20°C~+180°C
Pressure: ≤1.6MPa
Speed: ≤20m/s
|
Materials |
Burgmann Multi-Spring mechanical Seals Material
Stationary Ring (Carbon/SiC/TC)
Rotary Ring (SiC/TC/Carbon)
Secondary Seal (FKM/PTFE+FKM)
Spring & Other Parts (SS304/SS316)
|
|
