MG1-100mm Eagle Burgmann Mechanical Seals MG1 Series for Shaft size 100mm Pumps-Rubber Bellow seals
Подробная информация о продукте:
| Место происхождения: |
Китай |
| Фирменное наименование: |
TLANMP |
| Сертификация: |
ISO 9001:2005 |
| Model Number: |
MG1-100 |
Оплата и доставка Условия:
| Количество мин заказа: |
1 |
| Цена: |
$1~$500 |
| Упаковывая детали: |
Промышленная упаковка нейтрали (бумажная коробка) |
| Время доставки: |
1-3 через день после компенсации |
| Условия оплаты: |
Т/Т, ВУ, ПайПал, Алипай етк |
| Поставка способности: |
1~1000 частей в месяц |
| Minimum Order Quantity: |
1 |
Контакт
Подробное описание продукта
| Выделить: |
Burgmann mechanical seals, Rubber Bellow seals, MG1 Seals |

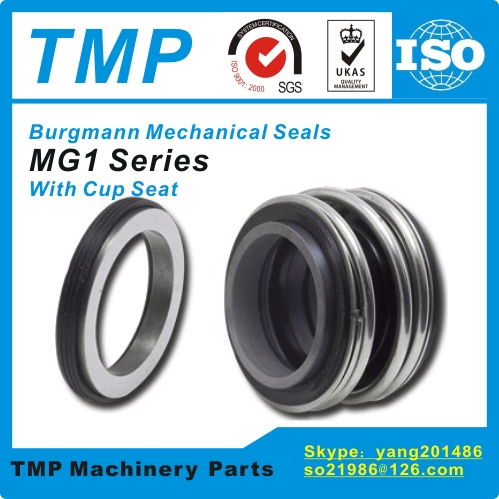

MG1-100mm Eagle Burgmann Mechanical Seals MG1 Series for Shaft size 100mmPumps (Material-SIC/SIC/FKM) |
| Series | Burgmann Mechanical Seals MG1 |
| Model Number | MG1-100mm |
| Shaft Size | 100mm |
| Introduction | Mechanical seals of the MG series are amongst the most commonly used. The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing element and drive collar. The seal face is driven through the spring and “L“-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications |
Application
Date | OPERATING LIMITS
Temperature:-20°C~+120°C
Pressure: ≤1.2MPa
Speed: ≤10m/s Equivalent to : • Burgmann MG1 seal • Flowserve Pac-Seal 190 • Hecker HN 410SU • Roten L3 |
| Materials | •Stationary Ring(Ceramic/SiC/TC)
•Rotary Ring(Carbon/SiC/TC)
•Secondary Seal(NBR/EPDM/FKM)
•Spring & Other Parts(SUS304/SUS316) |
