CSEC110/CSCC110/CSXC110 INA Thin Section Bearing (11x11.75x0.375 inch)KYC110/KRC110/KXC110

Главная страница Продукция Тонкий раздел беаринг-КА/Б/К/Д/Ф/Г

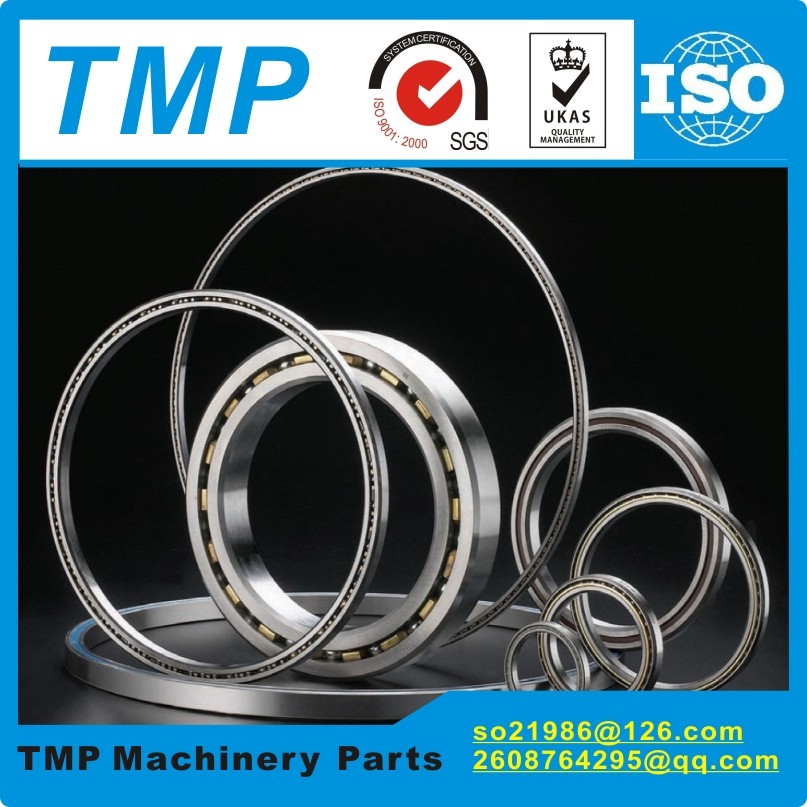

CSEC110/CSCC110/CSXC110 INA Thin Section Bearing (11x11.75x0.375 inch)KYC110/KRC110/KXC110

Подробная информация о продукте:

Place of Origin:	China
Фирменное наименование:	TMP
Сертификация:	ISO9001:2008
Model Number:	KC110

Оплата и доставка Условия:

Minimum Order Quantity:	1
Цена:	US$1-100
Packaging Details:	Industrial Neutral Packing
Delivery Time:	10 days
Payment Terms:	T/T,Paypal,Western Union,Escrow
Supply Ability:	1000 pcs/month

Контакт

Подробное описание продукта

Angular Contact Ball type:	CSEC110	Deep Groove Ball type:	CSCC110
Four-Point Contact Ball type:	CSXC110

CSEC110/CSCC110/CSXC110 INA Thin Section Bearing (11x11.75x0.375 inch)(279.4x298.45x9.525 mm) NTN-KYC110/KRC110/KXC110

A . Parameters

Brand-

TMP

Structure-

Angular Contact Ball/Deep Groove Ball/Four-Point Contact Ball

Model number
(INA)-

CSEC110/CSCC110/CSXC110

Model number
(Kaydon)-

KC110AR0/KC110CP0/KC110XP0

Model number
(NTN)-

KYC110/KRC110/KXC110

Inner ring(in)-

Outer ring(in)-

11.75

Width(in)-

0.375

Weight(lb)-

1.14

Materials-

Chrome steel/GCR15/Stainless steel

Precision grade-

Lubrication type-

Oil

Material(Ball)-

Steel ball/Ceramic ball

Number of Row-

Single rows

Section Type-

Thin section

Quality-

High speed, Low noise and Long life

B . Thin Section Ball Bearing-Specification Sheet

Model
Number

Size(in)

Land Diameters (in)

Capacities in Pounds1

Weight
in
Pounds

Interchange

Bore

Outside
Diameter

Land
Dia. L1

Land
Dia. L2

C'bore
Dia. L3

Radial

Thrust

Moment

Kaydon

NTN

Static

Dyn.

Static

Dyn.

Static

Dyn.

CSEC110

11.75

11.277

11.473

11.542

6720

2047

19390

5280

1.14

KC110AR0

KYC110

CSCC110

11.75

11.277

11.473

5470

1879

1.16

KC110CP0

KRC110

CSXC110

11.75

11.277

11.473

6720

2047

19390

5280

1.14

KC110XP0

KXC110

C . Reail-silm Thin-section bearings Details

To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: Type 1-Radial contact, Type 2-Angular contact and Type 3-Four point contact . Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them.

D . Thin-section bearings Model Number

Type 1-Radial
contact

KC040AR0/KYC040/CSEC040 KC042AR0/KYC042/CSEC042 KC045AR0/KYC045/CSEC045
KC047AR0/KYC047/CSEC047 KC050AR0/KYC050/CSEC050 KC055AR0/KYC055/CSEC055
KC060AR0/KYC060/CSEC060 KC065AR0/KYC065/CSEC065 KC070AR0/KYC070/CSEC070
KC075AR0/KYC075/CSEC075 KC080AR0/KYC080/CSEC080 KC090AR0/KYC090/CSEC090
KC100AR0/KYC100/CSEC100 KC110AR0/KYC110/CSEC110 KC120AR0/KYC120/CSEC120
KC140AR0/KYC140/CSEC140 KC160AR0/KYC160/CSEC160 KC180AR0/KYC180/CSEC180
KC200AR0/KYC200/CSEC200 KC250AR0/KYC250/CSEC250 KC300AR0/KYC300/CSEC300

Type 2-Angular
contact

KC040CP0/KRC040/CSCC040 KC042CP0/KRC042/CSCC042 KC045CP0/KRC045/CSCC045
KC047CP0/KRC047/CSCC047 KC050CP0/KRC050/CSCC050 KC055CP0/KRC055/CSCC055
KC060CP0/KRC060/CSCC060 KC065CP0/KRC065/CSCC065 KC070CP0/KRC070/CSCC070
KC075CP0/KRC075/CSCC075 KC080CP0/KRC080/CSCC080 KC090CP0/KRC090/CSCC090
KC100CP0/KRC100/CSCC100 KC110CP0/KRC110/CSCC110 KC120CP0/KRC120/CSCC120
KC140CP0/KRC140/CSCC140 KC160CP0/KRC160/CSCC160 KC180CP0/KRC180/CSCC180
KC200CP0/KRC200/CSCC200 KC250CP0/KRC250/CSCC250 KC300CP0/KRC300/CSCC300

Type 3-Four
point
contact

KC040XP0/KXC040/CSXC040 KC042XP0/KXC042/CSXC042 KC045XP0/KXC045/CSXC045
KC047XP0/KXC047/CSXC047 KC050XP0/KXC050/CSXC050 KC055XP0/KXC055/CSXC055
KC060XP0/KXC060/CSXC060 KC065XP0/KXC065/CSXC065 KC070XP0/KXC070/CSXC070
KC075XP0/KXC075/CSXC075 KC080XP0/KXC080/CSXC080 KC090XP0/KXC090/CSXC090
KC100XP0/KXC100/CSXC100 KC110XP0/KXC110/CSXC110 KC120XP0/KXC120/CSXC120
KC140XP0/KXC140/CSXC140 KC160XP0/KXC160/CSXC160 KC180XP0/KXC180/CSXC180
KC200XP0/KXC200/CSXC200 KC250XP0/KXC250/CSXC250 KC300XP0/KXC300/CSXC300
