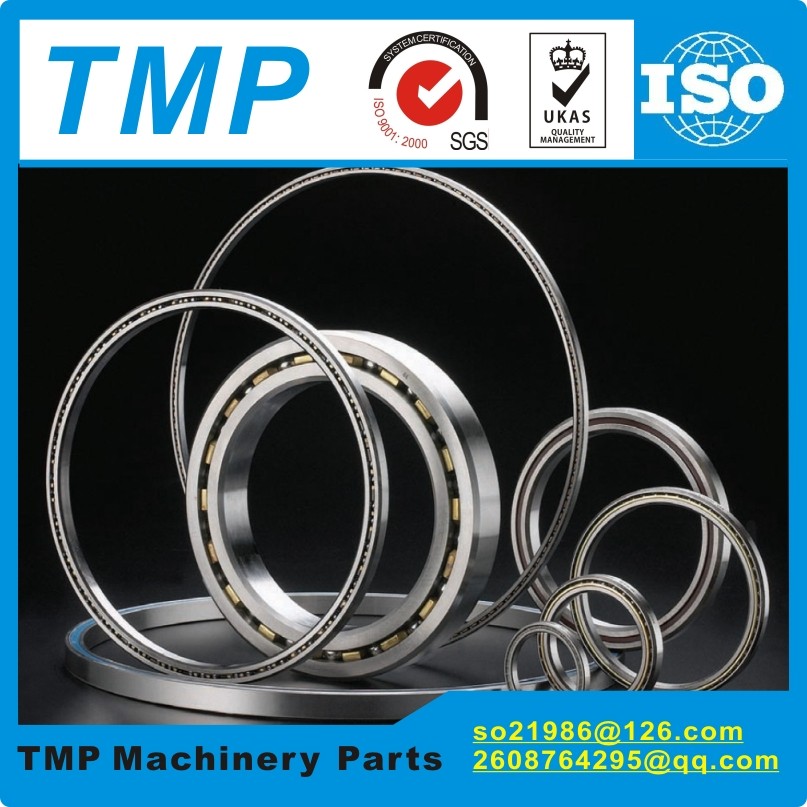

C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings Details |
|
Product Features |
To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: radial contact
(type C), angular contact (type A), and fourpoint contact (type X) and in a variety of sizes ,or series (e.g., KA, KB, KC,
etc.). Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements
uniformly and prevent contact between them.
|
|
Applications |
Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning and lightweight
designs are critical.
|
|
C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings 3 types |
|
Type A-KD |
Open REALI-SLIM Bearing Selections Type A Angular Contact, Snapover assembly permits use of a onepiece circular pocket ring
separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are normally
used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust to establish contact
angle.
|
|
Type C-KD |
A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in
either direction – often used in conjunction with another bearing. |
|
Type X-KD |
Standard bearing lines are most often designed to handle either radial or axial load conditions. The unique feature about the
REALI-SLIM Type X four-point contact bearing line is that the gothic arch geometry of the inner and outer races enables a single bearing
to carry three types of
loading (radial, axial and moment) simultaneously. This makes it the bearing of choice for many applicationssince a single fourpoint
contact bearing can often replace two bearings, providing a simplified design.
Type X bearings may also be furnished with an internal diametral preload for those applications requiring greater stiffness or zero free
play. This is accomplished by using balls that are larger than the space provided in the raceways. The balls and raceways, therefore,
have some elastic deformation in the absence of an external load
|
|
C . Type A-KD/Type C-KD/Type X-KD series Reail-silm Thin-section bearings Model Number |
|
Type A-KD |
KD040AR0,KD042AR0,KD045AR0,KD047AR0,KD050AR0,KD055AR0,KD060AR0,KD065AR0,KD070AR0,KD075AR0,KD080AR0,
KD090AR0,KD100AR0,KD110AR0,KD120AR0,KD140AR0,KD160AR0,KD180AR0,KD200AR0,KD210AR0,KD250AR0,KD300AR0
|
|
Type C-KD |
KD040CP0.KD042CP0.KD045CP0.KD047CP0.KD050CP0.KD055CP0.KD060CP0.KD065CP0.KD070CP0.KD075CP0.KD080CP0.
KD090CP0.KD100CP0.KD110CP0.KD120CP0.KD140CP0.KD160CP0.KD180CP0.KD200CP0.KD210CP0.KD250CP0.KD300CP0
|
|
Type X-KD |
KD040XP0,KD042XP0,KD045XP0,KD047XP0,KD050XP0,KD055XP0,KD060XP0,KD065XP0,KD070XP0,KD075XP0,KD080XP0,KD090XP0,
KD100XP0,KD110XP0,KD120XP0,KD140XP0,KD160XP0,KD180XP0,KD200XP0,KD210XP0,KD250XP0,KD300XP0
|
