7009 Ceramic Ball Bearing

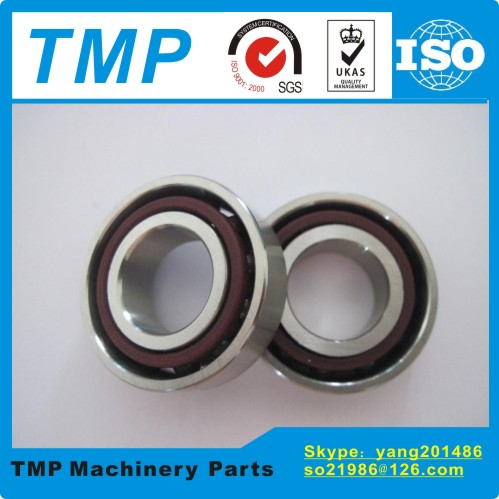

7009 HQ1 AC/C DB P4 Ceramic Ball Bearings (45x75x16mm) Angular contact bearing TMP Provide High precision Spindle bearings
A . Ceramic Ball Bearings Parameters
Brand-	TMP
Structure-	Ceramic Ball/Angular Contact ball
Model number-	7009 HQ1
Inner ring(mm)-	45
Outer ring(mm)-	75
Width(mm)-	16
Weight(Kg)-	0.23
Materials-	Chrome steel/GCR15
Precision grade-	P4/P2
Lubrication type-	Grease lubrication
Contact Angle-	C=15°;AC=25°
Material(Ball)-	SN24:Ceramic ball(Si3N4)
Number of Row-	Single rows
Material(Cage)-	TYN-PA;TR-PF
Combination-	SU:Universal combination (single row) DU:Universal combination (double rows) DB: Back-to-back combination DF: Face-to-face combination DT: Parallel combination DBD.DFD.DTD: Three rows DBB.DFF.DBT.DFT.DTT: Four rows

B . 7009 HQ1 Ceramic Ball Bearings Specification Sheet
Model Number	Dimensions			α=15°		α=25°		Material (Cage )	Weight (kg) Approx
				Limiting speed		Limiting speed
	d	D	B	Basic load rating	Lubrication	Basic load rating	Lubrication
				Cr Cor	Grease Oil	Cr Cor	Grease Oil
7009 HQ1	45	75	16	13.1 10.2	27000 42000	12.5 9.7	25000 39000	PA/PF	0.23

Categories:	Angular Contact Ball Bearings Ceramic Ball Bearings
Related Search:	7001 HQ1 AC/C P4,7001C Ceramic Ball Bearings,7001C Spindle bearing,7001C High Speed Bearing,12x28x8mm Bearing

Product

Features

Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision

Spindle and Motors

Series

Introduction

High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed

bearings-70 Series Angular Contact Bearings

Series

Model No.

7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,

7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
