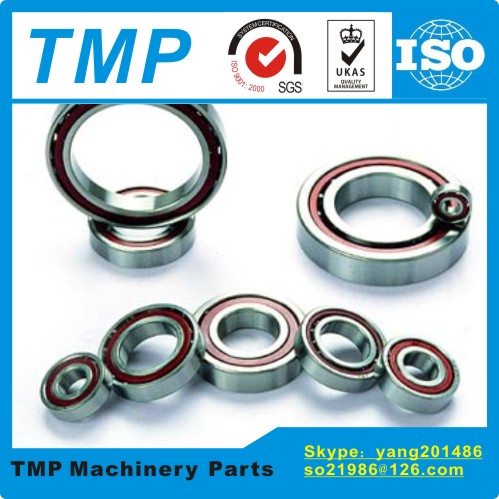

7017 HQ1 AC/C P4 Ceramic Ball Bearings (85x130x22mm) Angular contact bearing Open Type High Speed Spindle bearings

Контакт

Подробное описание продукта

Высокий свет:	7017 Ceramic Ball Bearing , 85x130x22mm bearing , 7017 bearing

Высокий свет:

7017 Ceramic Ball Bearing

7017 HQ1 AC/C P4 Ceramic Ball Bearings (85x130x22mm) Angular contact bearing Open Type High Speed Spindle bearings
A . Ceramic Ball Bearings Parameters
Brand-	TMP
Structure-	Ceramic Ball/Angular Contact ball
Model number-	7017 HQ1
Inner ring(mm)-	85
Outer ring(mm)-	130
Width(mm)-	22
Weight(Kg)-	0.878
Materials-	Chrome steel/GCR15
Precision grade-	P4/P2
Lubrication type-	Grease lubrication
Contact Angle-	C=15°;AC=25°
Material(Ball)-	SN24:Ceramic ball(Si3N4)
Number of Row-	Single rows
Material(Cage)-	TYN-PA;TR-PF
Combination-	SU:Universal combination (single row) DU:Universal combination (double rows) DB: Back-to-back combination DF: Face-to-face combination DT: Parallel combination DBD.DFD.DTD: Three rows DBB.DFF.DBT.DFT.DTT: Four rows

B . 7017 HQ1 Ceramic Ball Bearings Specification Sheet
Model Number	Dimensions			α=15°		α=25°		Material (Cage )	Weight (kg) Approx
				Limiting speed		Limiting speed
	d	D	B	Basic load rating	Lubrication	Basic load rating	Lubrication
				Cr Cor	Grease Oil	Cr Cor	Grease Oil
7017 HQ1	85	130	22	35.0 35.2	13000 21000	33.0 33.4	11000 18000	PA/PF	0.878

Categories:	Ceramic Ball Bearings Angular Contact Ball Bearings
Related Search:	7017 HQ1 AC/C,7017C Ceramic Ball Bearings,7017C Spindle bearing,7017C High Speed Bearing,85x130x22mm Bearing

Product

Features

Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision

Spindle and Motors

Series

Introduction

High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed

bearings-70 Series Angular Contact Bearings

Series

Model No.

7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,

7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
